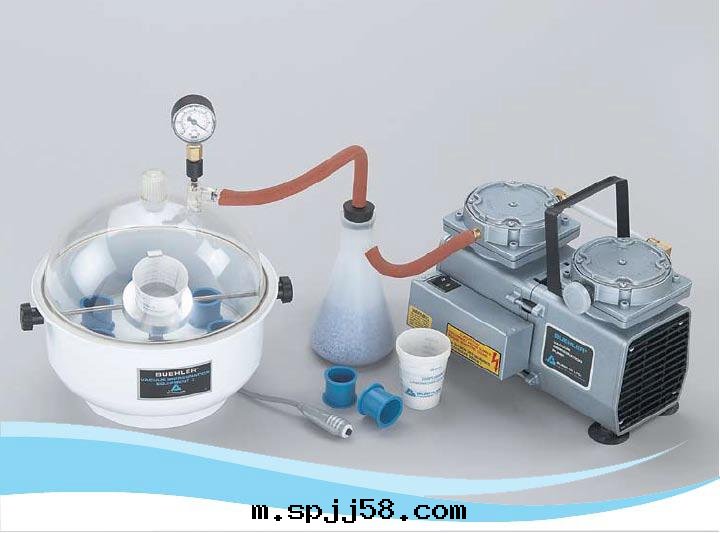

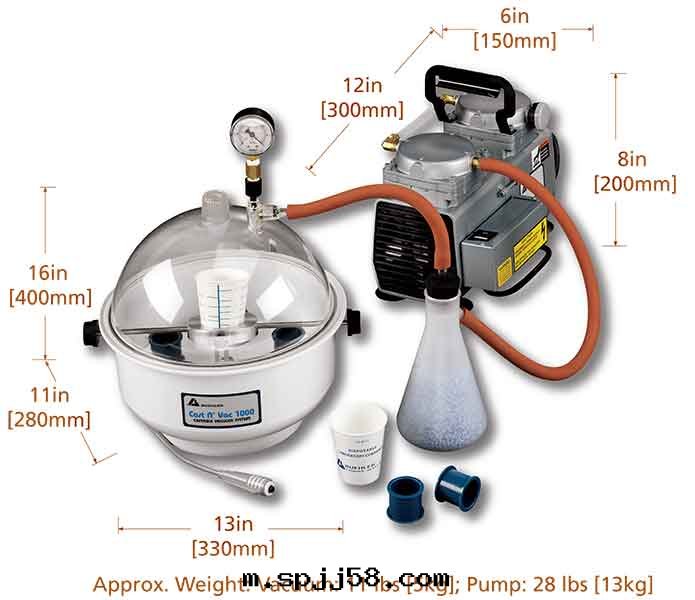

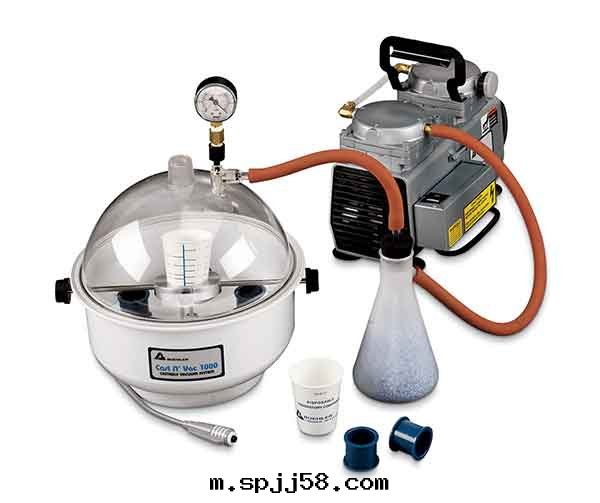

Vacuum Systems

This castable mounting vacuum system for epoxy offer excellent pore impregnation in a compact format. As a result, edge retention is enhanced and friable samples are supported during grinding and polishing.

High efficiency

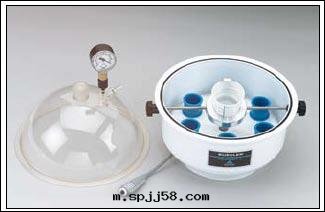

• Large vacuum chamber allows for  11, 1.5in molds to be processed simultaneously.
• The rugged vacuum pump supplies ample vacuum pull down to quickly evacuate trapped air from any porous specimen while the patented, high strength plastic chamber maintains vacuum throughout the impregnation period.

Optimzed Pore Impregnation

• The unique dispensing mechanism with a built in rotating turn table.
• Allows pouring epoxy while under vacuum.

Frequency                                50 or 60

Voltage                                115, 220

Phase                                1

Mount Capacity                       multiple

Part Number                       Voltage/Frequency

20-1382-160                         115VAC, 60Hz

20-1382-250                          20VAC, 50Hz

20-1382-250 (Europe Only)  220VAC, 50Hz

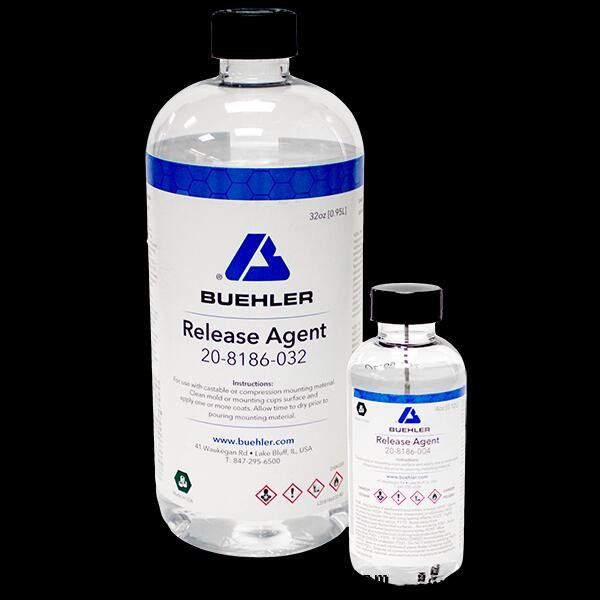

Release Agent                                     Mounting Accessories
