| BUEHLER标乐Precision Sectioning Saw IsoMet1000 |

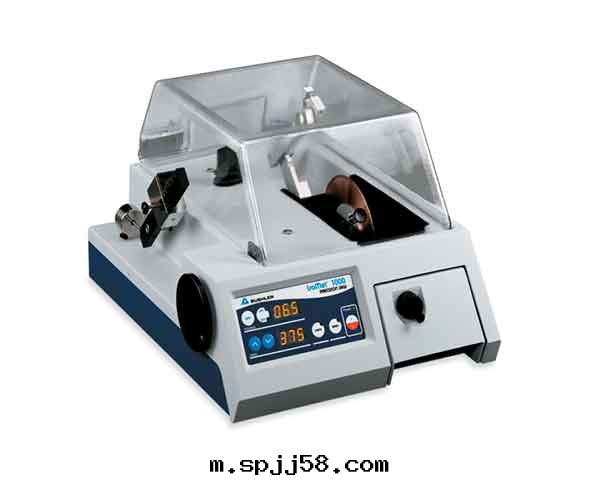

IsoMet™1000 Precision Sectioning Saw
Designed for those who demand sample integrity and rapid sectioning capabilities, the IsoMet 1000 is a fully enclosed, precisionsectioning saw designed for cutting various types of material with minimal deformation. Its great versatility in chucking allows for holding all types of sample shapes and configurations giving today’s laboratory a precision sectioning tool capable of cutting virtually any material including brittle or ductile metals, composites, cements, laminates, plastics, electronic devices, and biomaterials.

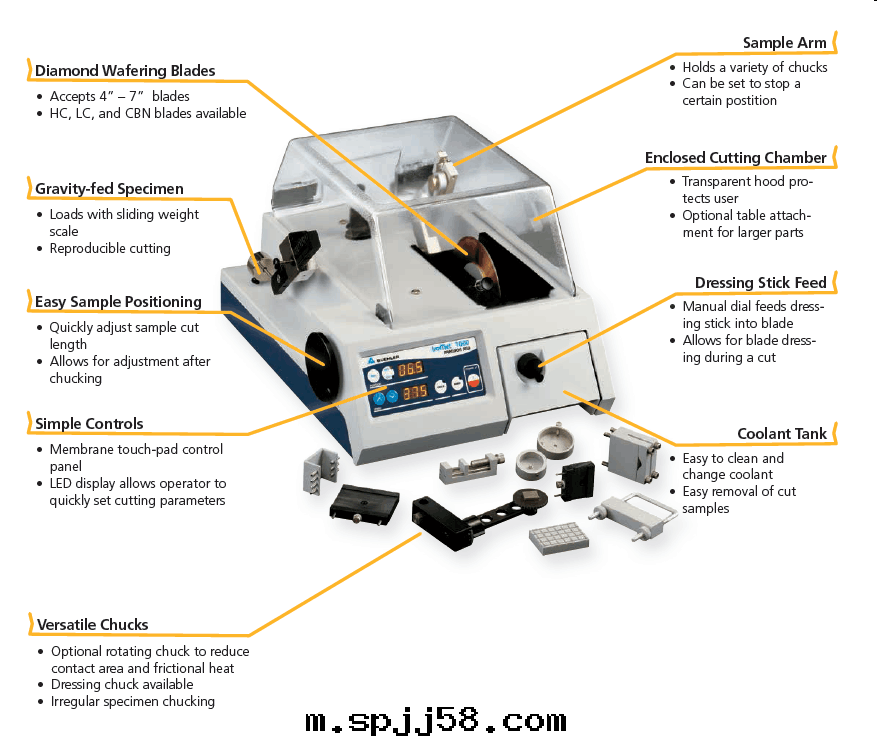

At a Glance
- A wide selection of chucks, fixtures, and rotating vises guarantee proper fixturing
- Gravity feed design allows for reproducibility and minimal sample deformation
- Can be set to turn off at a predetermined cutting depth
- Optional rotating chuck decreases heat from cutting
- Table saw attachment enables manual sectioning of larger parts
- Removable coolant tray for fast cleaning and easy removal of cut samples
- Blade dressing device available for rapid dressing during cutting
- Accepts 4in, 5in, 6in, and 7in diameter blades
The 11-2181 Rotating/Ocsillating Chuck 11-2484 Glass Slide Chuck holds
Accessory is available for sectioning petrographic samples for resectioning
difficult materials.

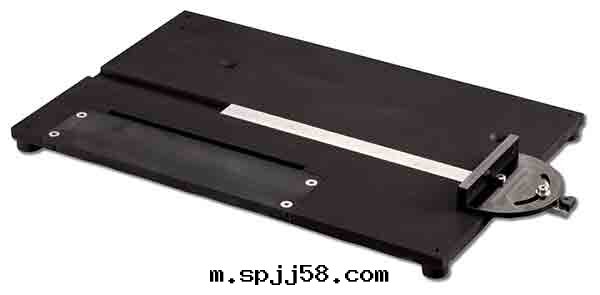

The 11-2482 Fastener Chuck makes The 11-2182 Table Saw Attachment
longitudinal bolt sections easy. effectively sections or trims printed circuit
boards or larger samples.
Weight arm and micrometer controls are
conveniently located outside the cutting
compartment.

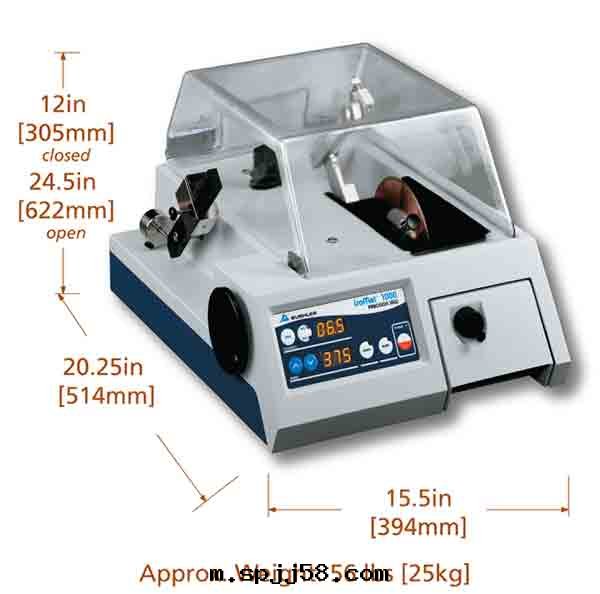

IsoMet 1000
- Simple to operate, gravity fed membrane panel controls
- Rotating vise for larger samples
- Optional table saw attachement
- 0.17Hp motor
- 100-975rpm
| Frequency |
universal |
| Voltage |
universal |
| Phase |
1 |
| Cutting Capacity |
2.00[in], 50.00[mm] |
| Wheel Diameter |
7.00[in] |
| Controls |
LED |
| Cut Action |
Gravity Fed Chop |
| Programmability |
No |
| Serial Capabilities |
No |
| Wheel Diameter |
178[mm] |
| RPM @60 Hz |
100 to 975 |
Accessories & Consumables for the IsoMet 1000 Precision Cutter

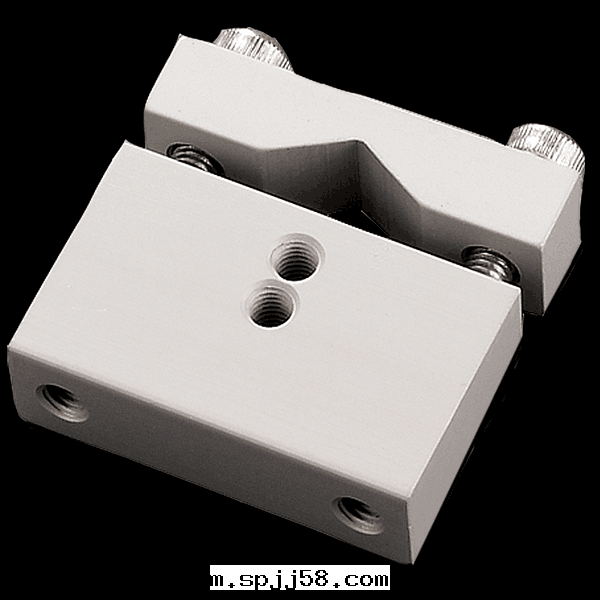

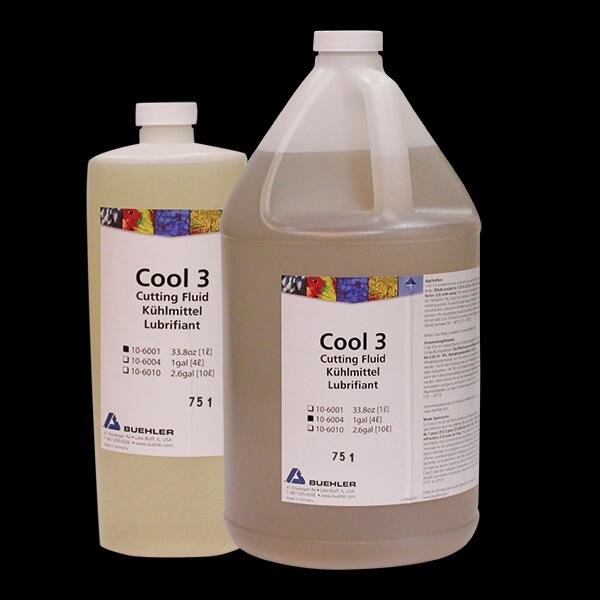

Coolant Precision Vises

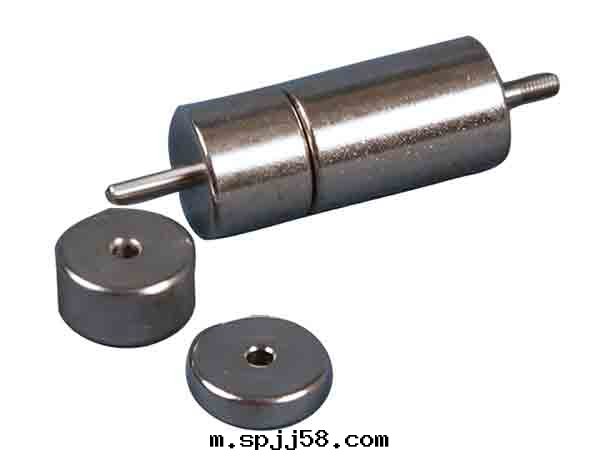

800 Gram Weight Set Rotating Chuck Assembly

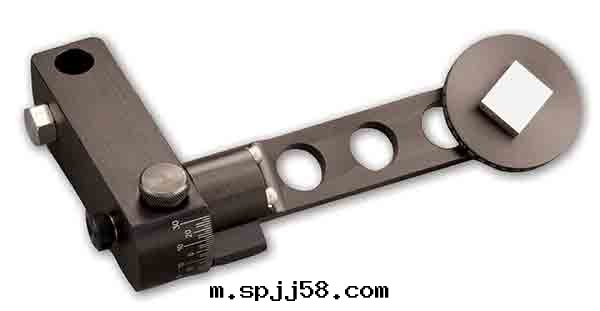

Table Saw Attachment Goniometer

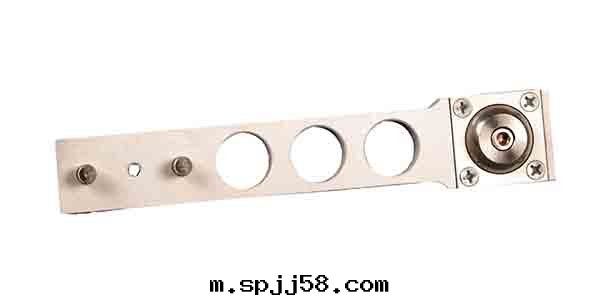

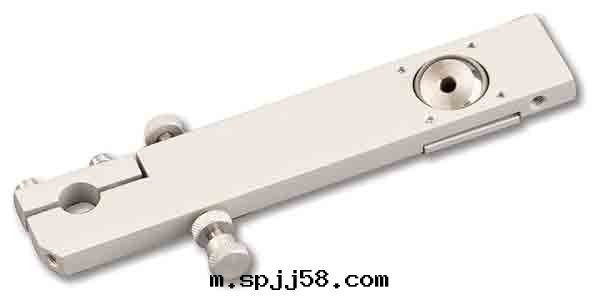

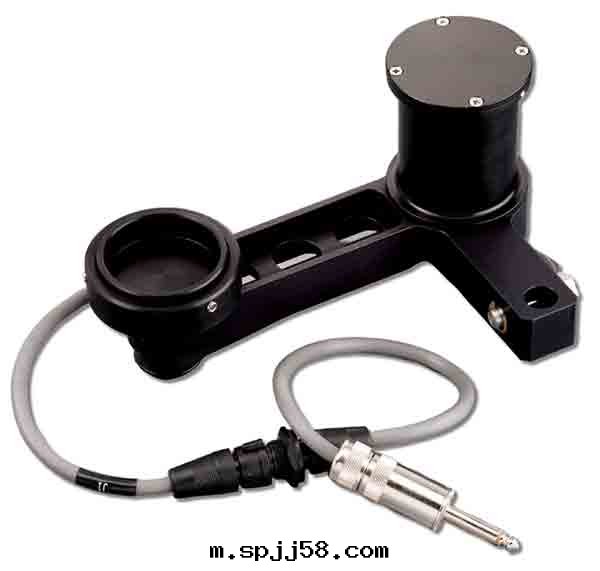

Swivel Arm Assembly Swivel Arm Assembly

Table Saw Splash Guard
|
|
